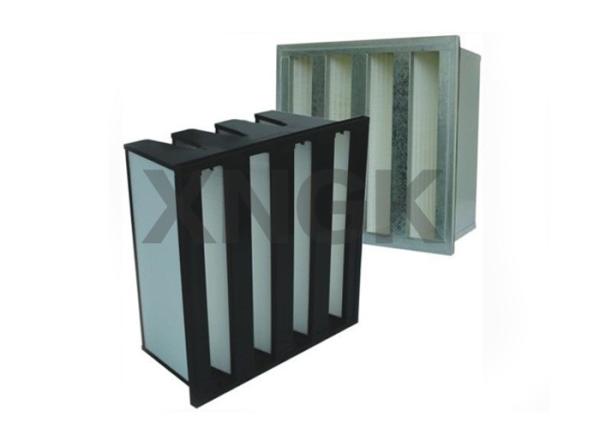

V cell HEPA filter for Pharmaceutical Medicine Industries Cleanroom

Specifications

Metal frame, stainless steel 304, 201, galvanized steel, plastic ABS ( flammable );

Glass fiber media, HV glass fiber paper;

Efficiency range: 99.9%, 99.99%, 99.999% @ 0.3 um;

Gasket: EVA neoprene;

Sealant: polyurethane;

Temperature: 80℃;

Humidity: 100%;

Initial pressure drop: 250Pa;

Final pressure drop: 600Pa;

V cell design make full use of the space to creat large air filte area;

For pharmaceutical industrial HVAC system, the cleanroom final filtration;

It`s very important to keep the cleanroom cleanliness level;

HEPA filters are air filters that can capture particle size 0.3 micron with efficiency reach to 99.97%; Especially design for cleanroom in pharmaceutical industries to provide clean air; It`s highly relatively that HEPA filters performance influence cleanroom cleanliness level; HEPA filters should be tested before installation and should be installed in proper way; FDA require HEPA filters should be tested for its filter media completeness, gasket air tight, frame air tight, sealant and so on; For non bacteria sterile workshop, HEPA filters module should be tested regularly;

XNGK is the professional manufacturer for air filters in Shenzhen China, our main product is Pre Panel Filter, Pre Pleated Filter, Pocket Filter, V Bank Filter, HEPA Filter, ULPA Filter, High Temperature Oven HEPA Filter, Laminar Flow Hoods, Pass Box, Air Shower, Fan Filter Unit, Clean Booth for Pharmaceutical, Food processing, Micron electronics, Hospital Cleanroom, and other commercial buildings such as airport, schools, libraries, supermarket; we also offer customized OEM service for air purifier filters, new fresh air system.

We have very strict quality control system, before production, we will test all the row material especially the glass fiber material. To make sure the pressure drop, efficiency and dust holding ability is reliable. After we make the HEPA filters, we will test if the HEPA filter get leakages by MPPS 1882 standard. We promise all the HEPA filters are without leakage and good performance. The glass fiber is made by HV company, their high quality glass fiber ensure our HEPA filters are quite good quality.
