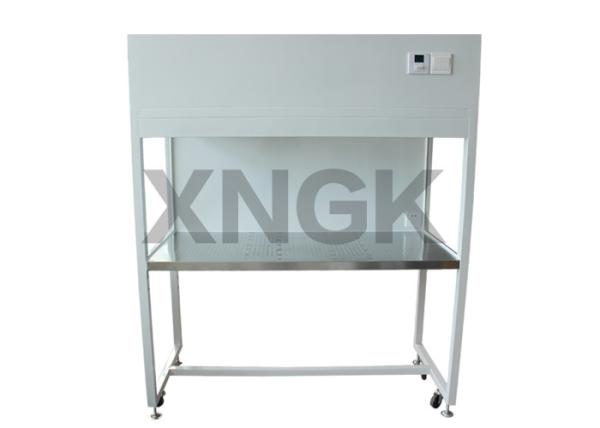

for Clean Room Laminar Flow Hoods Class 100 Painted Steel Frame

Laminar Flow Hoods

Features
Speed control
Lower operating budget design
Low operating noise
Customized dimension

Frame: stainless steel or painted steel.
Type: horizontal or vertical
Platform: stainless steel with holes or without
Light: fluorescent lamp or UV light
Pressure gauge: if required
Air velocity adjustable: three level adjust
or infinitely variable speeds.
Fan: 315mm diameter aluminum alloy, back centrifugal fan.
( or EBM fan made in Germany )
Air velocity: 0.45m/s±20% adjustable
Working area cleanliness level: class 100.
( max particle contain: 3530pcs per CBM @ 0.3μm )
Usage environment: temp 80℃,humidify: 80%
Power system: AC or DC.

Option
Pressure gauge
Control system
UV light

Mini-pleated HEPA Filter inside
Efficiency: H13, H14, U15 ( EN:1822 )
Filter media: glass fiber
External frame: aluminum alloy
Sealant: polyurethane
Gasket: EVA or fluid gel
Face guard: painted metal steel ( both inlet and outlet side )

XNGK is the professional manufacturer for air filters in Shenzhen China, our main product is Pre Panel Filter, Pre Pleated Filter, Pocket Filter, V Bank Filter, HEPA Filter, ULPA Filter, High Temperature Oven HEPA Filter, Laminar Flow Hoods, Pass Box, Air Shower, Fan Filter Unit, Clean Booth for Pharmaceutical, Food processing, Micron electronics, Hospital Cleanroom, and other commercial buildings such as airport, schools, libraries, supermarket; we also offer customized OEM service for air purifier filters, new fresh air system.

We have very strict quality control system, before production, we will test all the row material especially the glass fiber material. To make sure the pressure drop, efficiency and dust holding ability is reliable. After we make the HEPA filters, we will test if the HEPA filter get leakages by MPPS 1882 standard. We promise all the HEPA filters are without leakage and good performance. The glass fiber is made by HV company, their high quality glass fiber ensure our HEPA filters are quite good quality.
