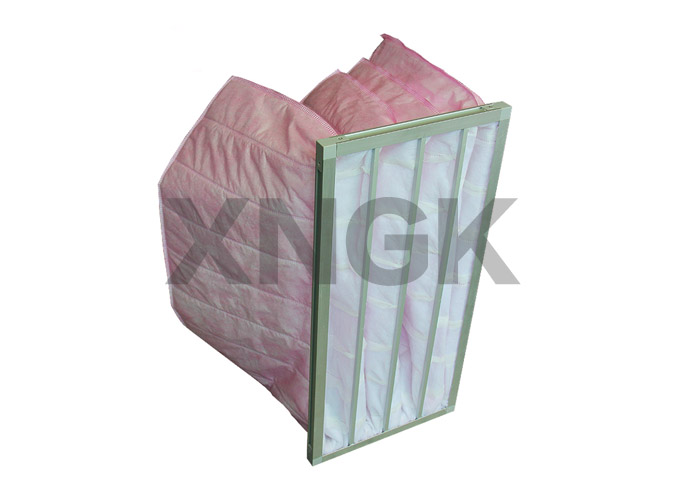

Aluminum Alloy Frame Polyester Pocket Air Filter for Food Processing HVAC

The pocket filters are designed as the medium filtration media to capture large size over 0.5 micron. The efficiency is about 90-99%, air flow rate about 3600CBM per hour for 24*24*12 inch size. The application of pocket filter can enlarge the life of HEPA filters. It`s quite important cause the budget to replace pocket filter are not expansive, but HEPA filters are quite costly. Also, replace the pocket filters and pre filters in time can reduce resistance of HVAC airflow. This also can reduce operation power consumption.

The frame is aluminum alloy thickness is 21mm, also galvanized steel frame thickness 21mm available.

We recommend galvanized steel for bulk order cause it is economic, the 16 gauge galvanized steel frame is quite strong and can beat rust for long term usage. Aluminum alloy frame is elegant and the frame is very stable and strong.

For some supermarket, mall, air port, library the HVAC system; HEPA filters filtration may not be necessary, it`s enough to remove 0.5um particles. PM2.5 is the key point particles for harm human breathing system. PM2.5 size is 2.5um which is larger than 0.5um. Control the particle size over 0.5um density below required standard is enough to create a comfortable environment.

XNGK is the professional manufacturer for air filters in Shenzhen China, our main product is Pre Panel Filter, Pre Pleated Filter, Pocket Filter, V Bank Filter, HEPA Filter, ULPA Filter, High Temperature Oven HEPA Filter, Laminar Flow Hoods, Pass Box, Air Shower, Fan Filter Unit, Clean Booth for Pharmaceutical, Food processing, Micron electronics, Hospital Cleanroom, and other commercial buildings such as airport, schools, libraries, supermarket; we also offer customized OEM service for air purifier filters, new fresh air system.

We have very strict quality control system, before production, we will test all the row material especially the glass fiber material. To make sure the pressure drop, efficiency and dust holding ability is reliable. After we make the HEPA filters, we will test if the HEPA filter get leakages by MPPS 1882 standard. We promise all the HEPA filters are without leakage and good performance. The glass fiber is made by HV company, their high quality glass fiber ensure our HEPA filters are quite good quality.
