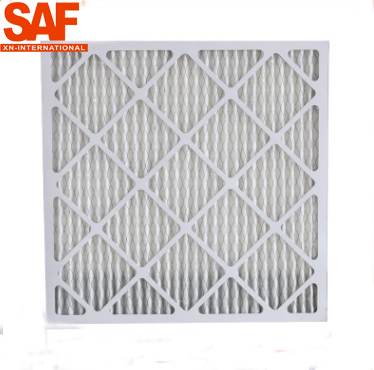

Paper Frame Primary Efficiency Disposable Panel Air Filter For AHU
system
Product introduction:
SAF Pleated Panel Air Filter it's media every component has been
engineered to deliver the highest level of continuous particle
removal, with
the lowest energy consumption and longest service life. The
components with lowest but equal MERV ratings( MERV 9 and MERV 9A),
a dual
layered gradient density media and dual performance guarantee
options of 9 or 12 months. Built strong designed to withstand
turbulent or
harsh air flow that may be common in some HVAC systems.
Advantages
1.The filtration material is made from non-woven fabrics, and the
synthetic fiber. It has the advantage of the large dust holding
capacity, the low pressure loss in the initial period and lager air
flow.

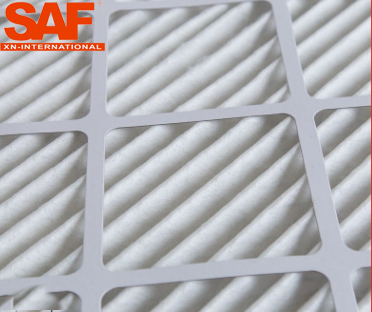

2.The filtration material compounds with the material net, and is
designed into the foldaway, which will provide the current air with
the largest filtration area, 5 times’ filtration area as the common
plane mesh. Paper frame and metal frame are available, which is
convenient for replace, less purchasing expense.
3.The moisture-proof: 80%;
4.Heat resistance: 80℃;
5.The rank of the filtration: G1 G2 G3 G4
Main application:
1.Pre-filtration of HVAC system
2.Pre-filtration of air compressor
3.Fresh air return system
4.Pre-filtration of local device
Technical Parameters:
| Model | Dimension(mm) | Rated air flow (m³/h) | Resistance(Pa) | Efficiency (Arrestance) |
|---|
| SAF-CG-8 | 295*295*46 | 800 | 10-25 | 50% |
| SAF-CG-13 | 295*495*46 | 1300 | 10-25 | 50% |
| SAF-CG-16 | 295*595*46 | 1600 | 10-25 | 50% |
| SAF-CG-22 | 395*595*46 | 2000 | 10-25 | 50% |
| SAF-CG-27 | 495*595*46 | 2700 | 10-25 | 50% |
| SAF-CG-32 | 595*595*46 | 3200 | 10-25 | 50% |
The size can be customized according to customers requirement
If you want to know more about our products,feel free to contact
me!
