Fast shutter door with Protection PVC Roll Up for clean area
1,Description of products
Flexible quick PVC roll up door, refers to the door running at more
than 0.6 meters per second, is a fast-moving barrier-free isolation
door, the main role is to quickly isolate, so as to ensure the
workshop air quality dust-free grade. It is widely used in many
places such as food, chemical, textile, electronics, supermarket,
freezing, logistics, warehousing and other places with functions of
heat preservation, cold preservation, pest control, Highly meet the
high-performance logistics and clean places, and save energy,
high-speed automatic shut down, improve work efficiency, create a
better working environment and so on.
2,Configuration
1), power failure manpower opening device;
2), infrared security protection system;
3), the operation button box;
4), Germany Grand Motor (BKJ) and Germany Grande control system;
5), the use of manufacturers standard packaging
3,Control System (Germany Grande)
1), LED man-machine dialogue interface: to achieve a complete,
systematic dialogue to maximize the effectiveness of
post-acceptance and post-warranty maintenance of human costs and
efficiency.
2), the absolute value of the whole limit technology: multi-turn
absolute encoder is the full amount of limit technology to support
the main hardware, it is the traditional incremental encoder (using
pulse count analog stop position) and single lap absolute encoder
(Using the program to remember the number of cycles) of the
upgraded version.
3), fast door power failure memory function: when the power outage
can be free to manually operate the fast door switch position,
power does not need to adjust the limit directly after work;
4),turn to set and identify the function: the power into the line
phase sequence or control box to the motor phase sequence error,
the system directly error, effectively avoid the late maintenance
or transfer due to negligence led to a major security incidents;
5), effective operation position setting and recognition function;
when the fast threshold set, the control system can intelligently
identify whether the door movement in the illegal range, once the
system will be prompted after the "limit exception" and shutdown
requirements After maintenance to continue to work, the function is
mainly for the late brake system failure;
6),permanent no cumulative error: the encoder accumulates the
current most common fault gate problems, and the full range of
absolute limit technology is completely avoided this point.
7),the location of closed-loop FM technology: mainly refers to the
random change the speed of the fast door, and no need to re-adjust
the adjustment after the limit.
8). professional drive circuit board hardware: the traditional use
of the market General PLC and inverter and incremental encoder with
the control system in the fast door technology has many congenital
shortcomings, can not be perfect: such as a variety of security
Switch response time, cumulative error of the incremental encoder,
multi-turn absolute encoder and PLC link problems and
non-professional staff can not be repaired and so on.
4,Technical Specification
| Motor | Yunfeng high-speed door motor with German high-frequency
high-frequency start and stop motor, high efficiency, strong
braking force, so long life. |
| Unbonded Buffer Technology | Based on the German Grande industrial door drive system frequency
conversion technology, so that the door is very smooth operation,
and solve the door in the operation of the dry tone problem, while
the end of the buffer technology to more effectively protect the
reducer and brake pads, especially on The protection of the
deceleration mechanism is most prominent. |
| Running speed | Door maximum operating speed 0.4 to 0.8M / s (adjustable) |
| Curtain material | Use high-strength molding of the folder within the high-strength
fiber-based PVC coated cloth, thickness 0.8mm, high wear
resistance. |
| sealing property | Track with PVC base of the double-row brush seal structure, more
effective pest control dust. |
| Bottom with gas seal structure |
| Wind resistance | The maximum 6 wind, to strengthen the level of wind may be 8, but
to make an appointment with the sales staff. |
| Transparent window | Only available for optional channels. Can also be made all parts of
the soft curtain, but need to advance and sales staff booking. |
| Safety performance | 1, infrared security protection: the door frame on both sides of
the radio eyes, fast door below the object, so that the door
remains open; when the door down when there are objects below, the
door will open to the most open position, to be below the barrier
And then delay the decline. (Standard configuration) |
| 2, the bottom of the security edge: When the door in the fall,
because the object is in the infrared safety protection of the
blind area, the door pressure in the lower obstacles, the door
speed rebound in the most open, effective households below the
object or Pedestrians avoid accidents. (Optional) |
| Manual function | Power failure or failure of the emergency measures, with ordinary
wrench can open the door. |
| Power requirements | 220V / 13A / single phase / 50HZ / 60HZ, IP54 control box, in line
with national electrical safety standards. |
| Insulation protection | Ip54 can be waterproof and dustproof even when used in harsh
environments. |
| Switch mode | Standard push button button box with emergency stop switch, and
optional: radar sensor / magnetic ring sensor / rope switch /
remote control open and so on. |
| Reserved port | Electronic control system reserved: infrared security switch,
geomagnetic sensor switch, radar sensor switch, rope switch, remote
control switch, two-door interlock, compatibility and strong. |
5,Produce photo

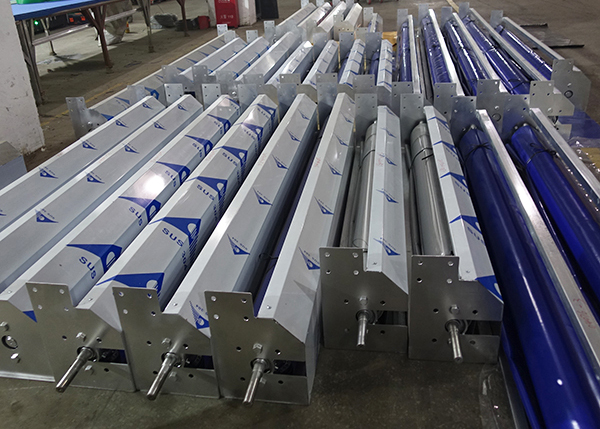

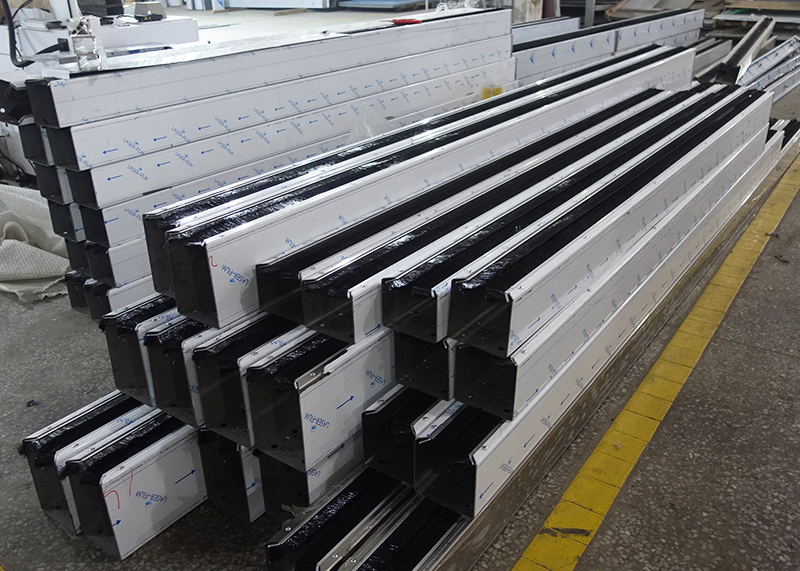

Parts of the Roll Up Doors.
