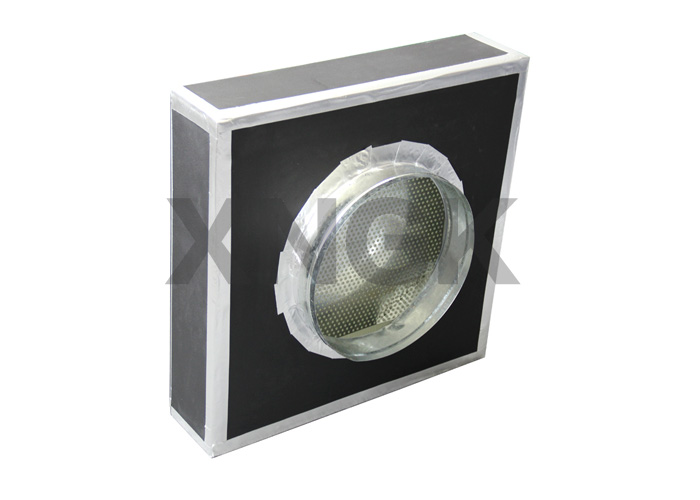

Cleanroom Disposable Ceiling Module Galvanized Steel Frame Class 100

Features:
Enclosed construction, leakage free
Small dimension, light weight, easily to install
Fire proof UL-B1

Electrical or physical mechanical lock design
Customized dimension
Stainless nozzle
Large air flow

Mini-pleated HEPA / ULPA inside ( efficiency: H13, H14, U15 )
Light weight, easily to install
Adjustable air flow rate, negative pressure sealing
Connect: circular or spiral metal ( 350mm, 300mm, 250mm )
External frame: aluminum, Al-Zn alloy, gal steel
Sealant: polyurethane
Gasket: EVA
Separator: hot-melt gel
HEPA filter material: glass fiber
Usage environment: temp 80℃,humidify: 80%

Other dimension and specification customized.

XNGK is the professional manufacturer for air filters in Shenzhen China, our main product is Pre Panel Filter, Pre Pleated Filter, Pocket Filter, V Bank Filter, HEPA Filter, ULPA Filter, High Temperature Oven HEPA Filter, Laminar Flow Hoods, Pass Box, Air Shower, Fan Filter Unit, Clean Booth for Pharmaceutical, Food processing, Micron electronics, Hospital Cleanroom, and other commercial buildings such as airport, schools, libraries, supermarket; we also offer customized OEM service for air purifier filters, new fresh air system.

We have very strict quality control system, before production, we will test all the row material especially the glass fiber material. To make sure the pressure drop, efficiency and dust holding ability is reliable. After we make the HEPA filters, we will test if the HEPA filter get leakages by MPPS 1882 standard. We promise all the HEPA filters are without leakage and good performance. The glass fiber is made by HV company, their high quality glass fiber ensure our HEPA filters are quite good quality.
