Custom size HEPA box with smooth diffuser plate for clean room

As the end air supply device of the clean air conditioning system, the air supply port of high efficiency filter is a kind of application in the field of ventilation and air conditioning.Clean air into the room through dilution action, reduce indoor air pollution concentration.The air will also be expelled from the tuyere or exhaust outlet. uniform diffusion of indoor airflow

1, Industries We Cater To

• Biotechnology
• Diagnostics Labs
• Pharmaceuticals
• Healthcare Industry
• Food Processing
• Semiconductors
• Chemical Industry
• Blood Banks

2. introduce HEPA box with smooth diffuser plate

HEPA terminal filter units with smooth diffuser plate used in air condition system and large air flow system.diffuser plate have plays a role to ensure The effective flow rate of air flow and the area of dispersion. The HEPA unit has a good air flow structure which ensure the purifying effect.

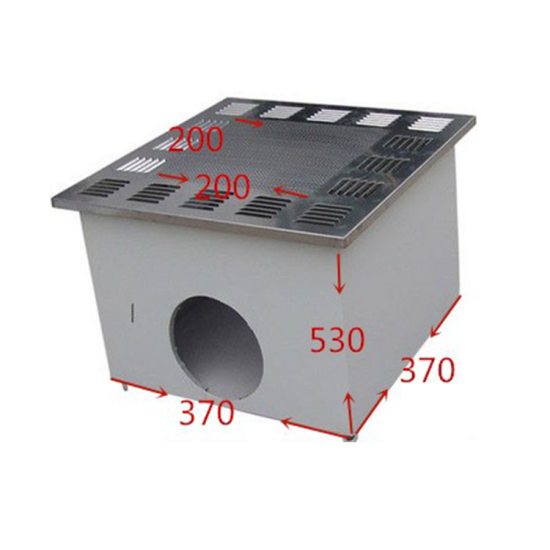

3. Regular size and parameter

Box with Damper Mounted on the Top

Box with Damper Mounted on the Side

4. Features and applications

Features :

out frame is made of high quality cold-rolled steel plate.

with electrostatic spraying with diffused flow board,

Static pressure box design,Uniform air distribution

Flange-round and square types, compact structure

Applications:

Widely used in medicine, sanitation, electronics, chemical industries and other industries to purify air conditioning systems

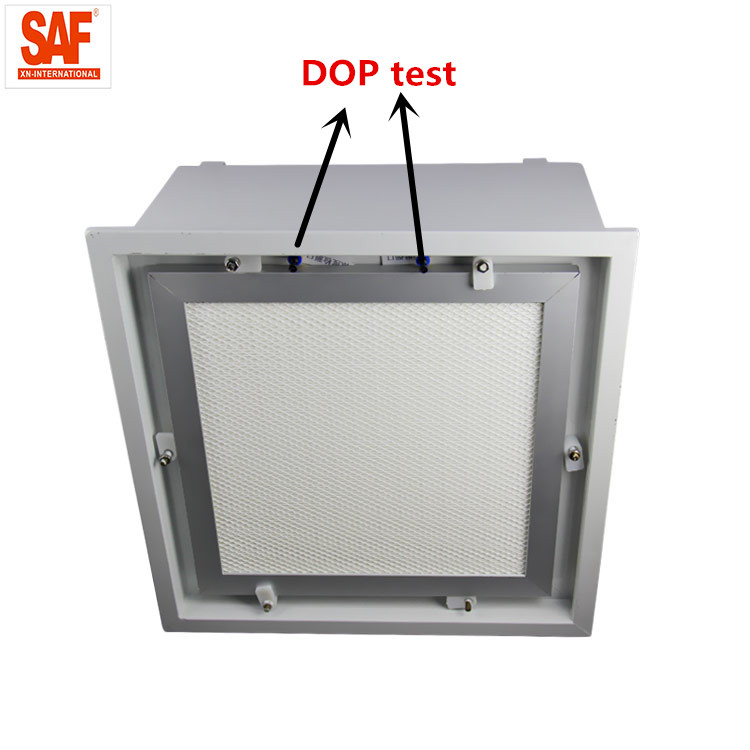

5. details of the HEPA box with smooth diffuser plate

● Flange has a square and circular structure

● frame material :stainless steel (SUS304/201) ,Cold rolled steel sheet spray plastic

● Certification: ISO9001:2008

● Filter material: glass fiber filter paper

● Gasket: EVA

● Filter media: Hot-melt

XNGK is the professional manufacturer for air filters in Shenzhen China, our main product is Pre Panel Filter, Pre Pleated Filter, Pocket Filter, V Bank Filter, HEPA Filter, ULPA Filter, High Temperature Oven HEPA Filter, Laminar Flow Hoods, Pass Box, Air Shower, Fan Filter Unit, Clean Booth for Pharmaceutical, Food processing, Micron electronics, Hospital Cleanroom, and other commercial buildings such as airport, schools, libraries, supermarket; we also offer customized OEM service for air purifier filters, new fresh air system.

We have very strict quality control system, before production, we will test all the row material especially the glass fiber material. To make sure the pressure drop, efficiency and dust holding ability is reliable. After we make the HEPA filters, we will test if the HEPA filter get leakages by MPPS 1882 standard. We promise all the HEPA filters are without leakage and good performance. The glass fiber is made by HV company, their high quality glass fiber ensure our HEPA filters are quite good quality.
