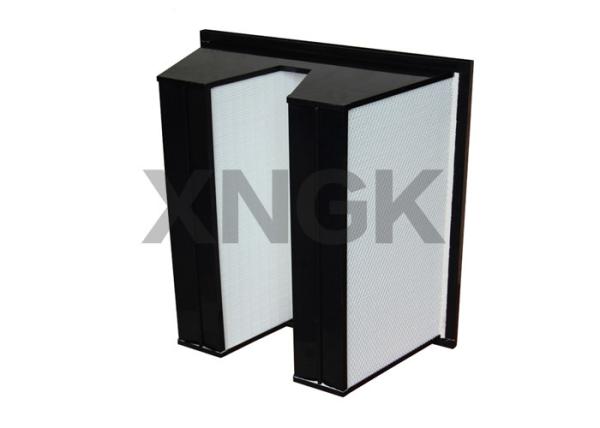

V Cell Air Filter Medium Efficiency Plastic Frame Glass Fiber Media

The advantageous for V Cell Air filter

V cell air filter is the special design for HVAC system, mini pleated filter media provide large air filter area, there are 4V design, so it`s 8 piece filter pack; filter pack thickness 25mm, 27 folds per 100mm;

this is a standard design for mini pleated air filter;

V cell air filter made of glass fiber or polyester filter material, it`s a very good replacement for pocket filter,

pocket filter will be stick each other in moist environment and the filter performance not as good as v cell filter;

Dove tailed gasket be stick on the back of the flange, can make sure no air leakage for installation;

Gasket material is neoprene that has a very good elasticity and anti corrosion in hard environment;

Gasket thickness 5mm, header thickness 25mm;

Plastic frame offer robust construction, double side metal mesh protect air filter material from damage;

Plastic frame color: black, customized color available;

Details for v cell filter

Applications

Medium filtration for HVAC system;

Good replacement for pocket;

For all commercial & industrial buildings` air conditioning systems;

Specification Data

Other size and specification available;

Resistance range: ±15%

XNGK is the professional manufacturer for air filters in Shenzhen China, our main product is Pre Panel Filter, Pre Pleated Filter, Pocket Filter, V Bank Filter, HEPA Filter, ULPA Filter, High Temperature Oven HEPA Filter, Laminar Flow Hoods, Pass Box, Air Shower, Fan Filter Unit, Clean Booth for Pharmaceutical, Food processing, Micron electronics, Hospital Cleanroom, and other commercial buildings such as airport, schools, libraries, supermarket; we also offer customized OEM service for air purifier filters, new fresh air system.

We have very strict quality control system, before production, we will test all the row material especially the glass fiber material. To make sure the pressure drop, efficiency and dust holding ability is reliable. After we make the HEPA filters, we will test if the HEPA filter get leakages by MPPS 1882 standard. We promise all the HEPA filters are without leakage and good performance. The glass fiber is made by HV company, their high quality glass fiber ensure our HEPA filters are quite good quality.
