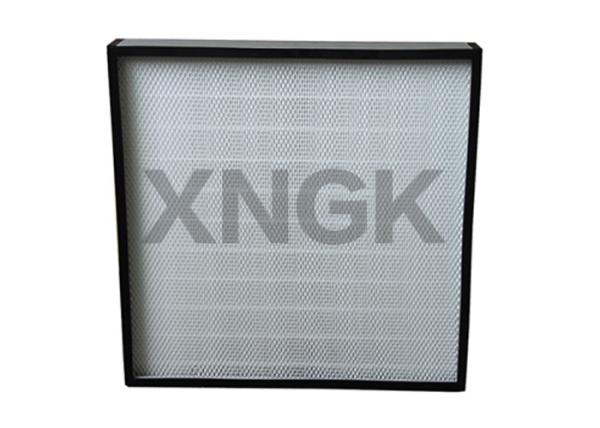

Hospital Surgery Room High Efficiency HEPA Air Filter Class 100

The mini pleated HEPA filters are special designed for hospital surgery room application,

efficiency class 100 99.99% @ 0.3um; that can remove most of the fine dust, smoke and

bacteria;

It`s quite important to keep the cleanliness level of surgery room, that purified air can creat

a high clean level spece when surgering; keep the patients from infection;

The specifications:

1. Efficiency: H13 or H14 99.99% @ 0.3um

2. Filter media: glass fiber made of HV company;

3. Separator: hot melt;

4. sealant: polyurethane around the filter media pack;

5. Frame: alumimum alloy;

6. Faceguard: painted metal mesh;

7. Gasket: EVA neoprene;

Standard size:

1220*610*69mm, 1175*575*69mm, 610*610*69mm, 1220*610*75mm and so on;

customized size also available;

the aluminum frame thickness can provide: 45mm, 50mm, 69mm, 75mm, 80mm, 96mm, 117mm, 220mm and so on;

Please replace pre filter and medium filter in time so that to keep the service life of HEPA filters;

normally, it`s 3 months to replace pre filters and 6 months to replace medium pocket filters or V bank filters;

Alll the HEPA filters will be tested before leaving the factories by DOP or MPPS standard;

XNGK is the professional manufacturer for air filters in Shenzhen China, our main product is Pre Panel Filter, Pre Pleated Filter, Pocket Filter, V Bank Filter, HEPA Filter, ULPA Filter, High Temperature Oven HEPA Filter, Laminar Flow Hoods, Pass Box, Air Shower, Fan Filter Unit, Clean Booth for Pharmaceutical, Food processing, Micron electronics, Hospital Cleanroom, and other commercial buildings such as airport, schools, libraries, supermarket; we also offer customized OEM service for air purifier filters, new fresh air system.

We have very strict quality control system, before production, we will test all the row material especially the glass fiber material. To make sure the pressure drop, efficiency and dust holding ability is reliable. After we make the HEPA filters, we will test if the HEPA filter get leakages by MPPS 1882 standard. We promise all the HEPA filters are without leakage and good performance. The glass fiber is made by HV company, their high quality glass fiber ensure our HEPA filters are quite good quality.
