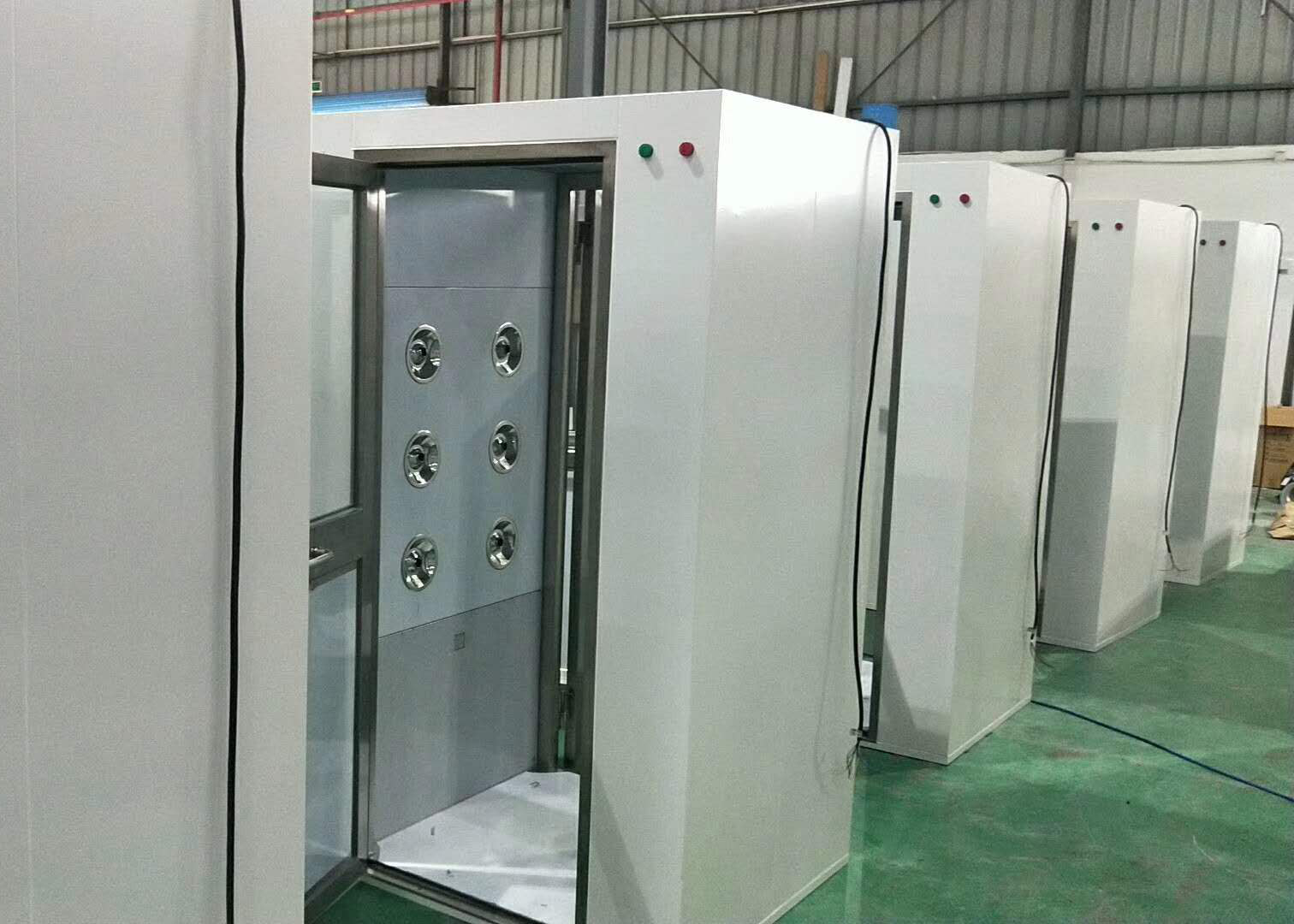

90 Degree L Design Air Shower for Clean Rooms Customized Size

The 90 degree L design air showers are typically design for clean rooms that there are not much enough space for installation.

90 degree L design air shower provide customized size and configuration.

Features:

Strong stainless steel frame, make sure the completeness of air shower when transportation or installation, over even for long-term usage. other frame material also available.

Size: we have professional designer for the air shower that can provide customized size service, and adjust the airflow, nozzle quantity & position according to your requirements.

Control: PLC program adjust air shower time and something else, infrared sensor sense the position of personnel. Voice tips when personnel enter the air shower.

Specifications:

Fan: 380V 50Hz , foreign standard available.

Size: standard size or customized.

Air velocity: 20-25 m/s

Air shower time: 10-99 s adjustable.

Frame: stainless steel, painted steel, laminate board.

Door material: stainless steel frame, temped glass fiber window.

Door lock: interlock, magnetic electric control.

HEPA filter size: 610*610*69mm * quantity.

contact person: Allen jiao

Mol/wechat:13926261037

Skype:jiaomingpei

Email:Allenjiao@xn-gk.com

XNGK is the professional manufacturer for air filters in Shenzhen China, our main product is Pre Panel Filter, Pre Pleated Filter, Pocket Filter, V Bank Filter, HEPA Filter, ULPA Filter, High Temperature Oven HEPA Filter, Laminar Flow Hoods, Pass Box, Air Shower, Fan Filter Unit, Clean Booth for Pharmaceutical, Food processing, Micron electronics, Hospital Cleanroom, and other commercial buildings such as airport, schools, libraries, supermarket; we also offer customized OEM service for air purifier filters, new fresh air system.

We have very strict quality control system, before production, we will test all the row material especially the glass fiber material. To make sure the pressure drop, efficiency and dust holding ability is reliable. After we make the HEPA filters, we will test if the HEPA filter get leakages by MPPS 1882 standard. We promise all the HEPA filters are without leakage and good performance. The glass fiber is made by HV company, their high quality glass fiber ensure our HEPA filters are quite good quality.

Our Production Equipment
