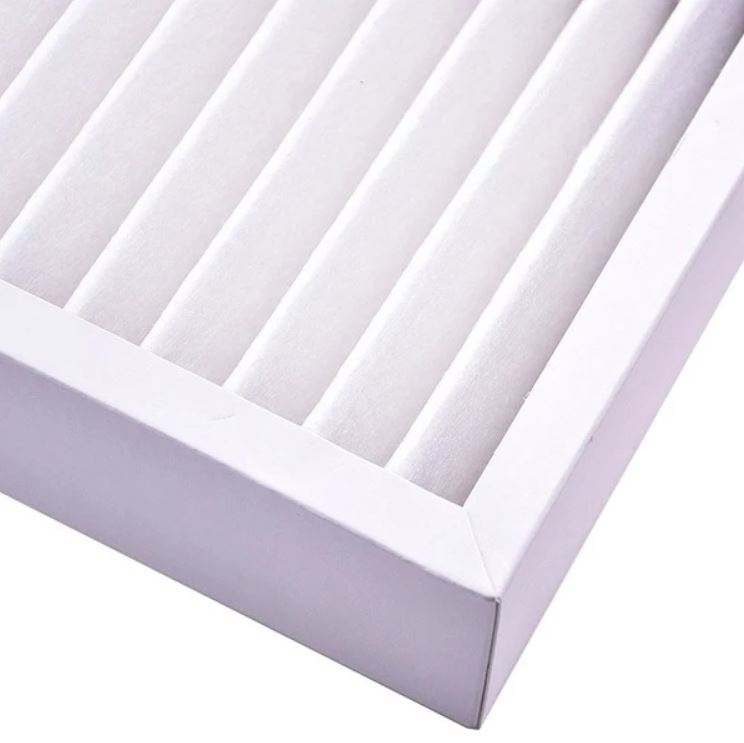

Pleat Synthetic Fiber Panel Filters

Application: Filter dust, pre-filter through air filter program

Type: synthetic fiber foldaway filter

Frame: aluminum, paper or galvanized

Media: synthetic fiber

Protect mesh: aluminum net or stainless steel net

EN779 class:G2, G3,G4,F5

Average arrestance:84%-90%(ASHRAE52.1-1992)

EUROVENT4/5 class: EU3,EU4,EU5

DIN53438 Non-flammability Standard: F1

Final resistance: (suggested) 200Pa-250Pa

Max. air flow: 125% of the rated air flow

Temp. resistance: 100℃

Humidity:100%

The panel filter is well suited to be as the pre-filter for the air-take- in sytstem and exhaust system of the air handling units or general ventilations system or the factories for purification.

ADVANTAGE

Pleated paper panel filter in pleating, Z line;

Stong structure with low pressure;

Easy for installation and disposal;

Temperature resistance up to 80;

Moistrue-resistant up to 100%;

Produced to customer's specification.

FRAME WORK

Polyester/cotton blend with expanded metal grid, and the flame is waterproof cardboard;

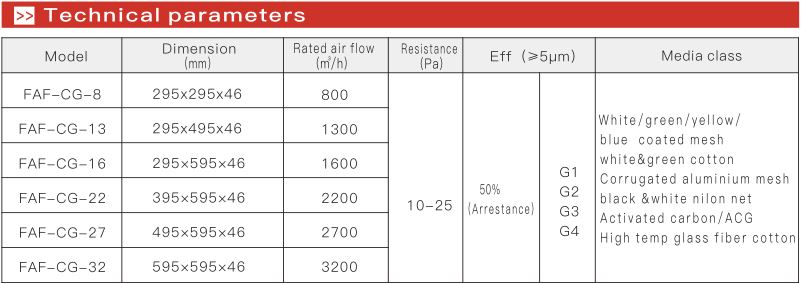

MEDIA MATERIALS

White/green/yellow/

blue coated mesh

white&green cotton

Corrugated aluminium mesh

black &white nilon net

Activated carbon/ACG

High temp glass fiber cotton

XNGK is the professional manufacturer for air filters in Shenzhen China, our main product is Pre Panel Filter, Pre Pleated Filter, Pocket Filter, V Bank Filter, HEPA Filter, ULPA Filter, High Temperature Oven HEPA Filter, Laminar Flow Hoods, Pass Box, Air Shower, Fan Filter Unit, Clean Booth for Pharmaceutical, Food processing, Micron electronics, Hospital Cleanroom, and other commercial buildings such as airport, schools, libraries, supermarket; we also offer customized OEM service for air purifier filters, new fresh air system.

We have very strict quality control system, before production, we will test all the row material especially the glass fiber material. To make sure the pressure drop, efficiency and dust holding ability is reliable. After we make the HEPA filters, we will test if the HEPA filter get leakages by MPPS 1882 standard. We promise all the HEPA filters are without leakage and good performance. The glass fiber is made by HV company, their high quality glass fiber ensure our HEPA filters are quite good quality.
