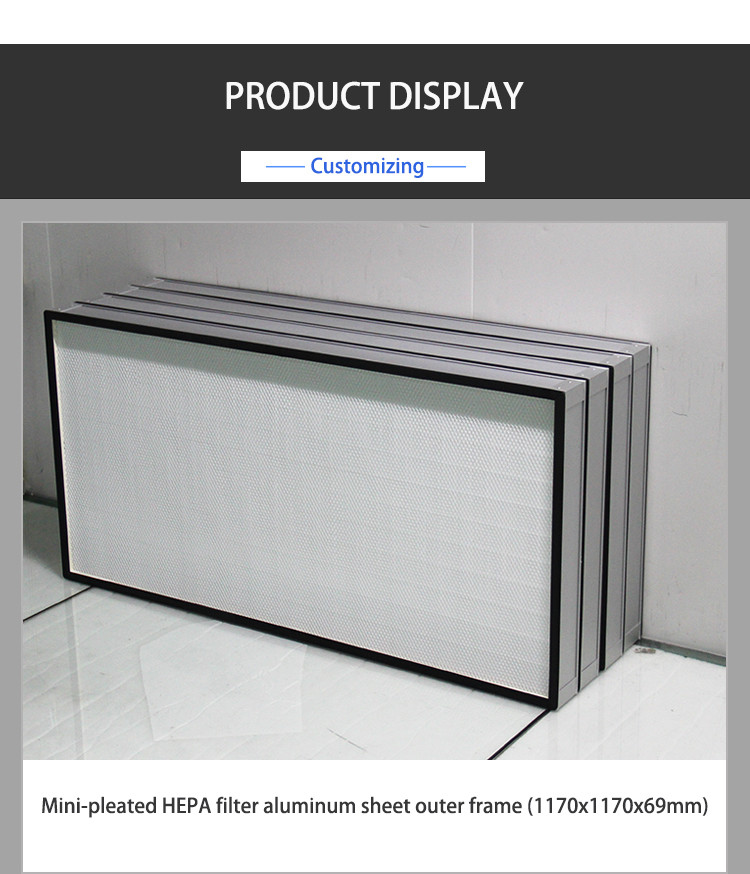

Pharmaceutical Filtration Mini- Pleat HEPA Filter

1. Waveness aluminum foil pleat or the paper pleat can make use of the filtration material completely. The thickness of the aluminum foil is 0.03mm, the height of the eaveness is 4mm, which make sure of the filtration area and the quality of the filter.

2. The filtration material is the high density paper which is made from super fine fibregalss. Pleat the filtration paper(made from the fiberglass) in order to enlarge the filtration area as large as possiblle and to slowdownt the filtration speed. It is very important for HEPA filter.

3. Laser tested one by one; Temp resistance up to 80C, Small resistance high efficiency; Long service life.

4. Applied to the terminal filtration for the air-condition filtration system. Used in hospital, electronic industry, food, precision instrument, electron semiconductors.

XNGK is the professional manufacturer for air filters in Shenzhen China, our main product is Pre Panel Filter, Pre Pleated Filter, Pocket Filter, V Bank Filter, HEPA Filter, ULPA Filter, High Temperature Oven HEPA Filter, Laminar Flow Hoods, Pass Box, Air Shower, Fan Filter Unit, Clean Booth for Pharmaceutical, Food processing, Micron electronics, Hospital Cleanroom, and other commercial buildings such as airport, schools, libraries, supermarket; we also offer customized OEM service for air purifier filters, new fresh air system.

We have very strict quality control system, before production, we will test all the row material especially the glass fiber material. To make sure the pressure drop, efficiency and dust holding ability is reliable. After we make the HEPA filters, we will test if the HEPA filter get leakages by MPPS 1882 standard. We promise all the HEPA filters are without leakage and good performance. The glass fiber is made by HV company, their high quality glass fiber ensure our HEPA filters are quite good quality.
